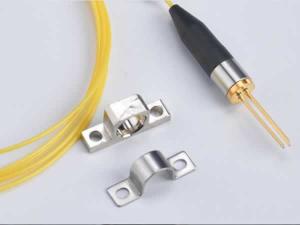

The DFB pigtailed laser diode device is designed on the basis of FP laser by adding a grating filter to it. Such addition enables the equipment to achieve a single longitudinal mode operation. This series of product has the advantage of large output power, small beam divergence, narrow spectrum, and high modulation rate. It is suitable for long-distance communications and finds wide use in the CATV system, GSM or CDMA transmission system, and other analog modulation systems.

The DFB pigtailed laser diode equipment includes one 1310nm or 1550nm MQW-DFB chip and 4 pins. It is supplied with single-mode fiber-optic output, low operating current, and high output power between 1MW and 10MW. The equipment delivers low noise at high linear output power. It also can be fitted with SC/APC or FC/APC connector.

• 1310nm 1MW-4MW
• 1310nm 8-10MW
• 1550nm 1-3MW
• 1550nm 6-8MW

1310nm DFB Pigtailed Laser Modules with 1MW-4MW

(If customers would like to know more about the details, please click here to download the following PDF file.)

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Rated Power	Po	1	-	4	mW	Ith+20mA
Slope Efficiency	SE			0.2	mW/mA
Threshold Current	Ith		10	15	mA	-
Forward Voltage Drop	Vop	-	1.0	1.2	V	CW, Ith+20mA
Cent Wavelength	λc	1300	1310	1320	nm	-
Spectrum Width(-3dB)	Δλ	-	0.5	1	nm	Ith+20mA
Side-mode Suppression Ratio	SMSR	35		-	dB	-
Bandwidth	Bw	2.5			GHz
Monitor Current	Im	100		900	uA	CW, Ith+20mA
Dark Current of Monitor	Id	-	-	100	nA	5V
Optical Isolation(Single stage)	ISO	35	40	-	dB
Optical Isolation(Double stage)	ISO	45	50	-	dB
Return loss	RL			-45	dB
Analog Characteristic index
Relative Intensity Noise	RIN	-	-155	-150	dB/Hz	-
RF Bandpass Flatness	BF		±1.5		dB
Third-order Distortion	IMD3	-	-55	-	dBc
Carrier Noise Ratio	CNR	51	-	-	dB	Note 1
Composite Second Order	CSO	-	-	-57	dBc
Composite Triple Beat	CTB	-	-	-65	dBc

1310nm DFB Pigtailed Laser Modules with 8-10MW

(If customers would like to know more about the details, please click here to download the following PDF file.)

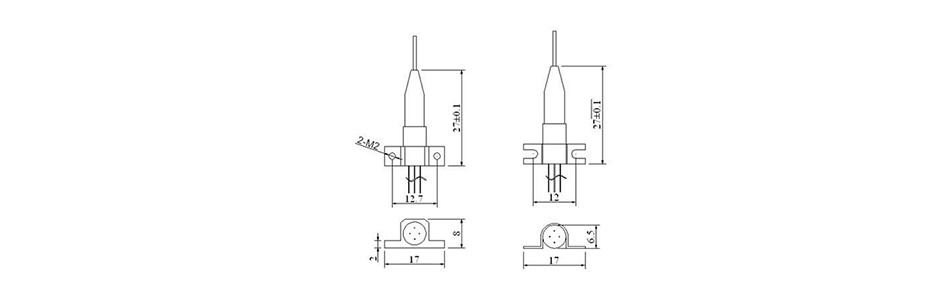

Drawing

1550nm DFB Pigtail Laser Diode Modules 1-3MW

(If customers would like to know more about the details, please click here to download the following PDF file.)

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Rated Power	Po	6	8	10	mW	Ith+40mA
Slope Efficiency	SE		0.15	0.2	mW/mA
Threshold Current	Ith		10	15	mA	-
Operating Current	Iop		50	70	mA
Forward Voltage Drop	Vop	-	1.0	1.2	V	CW, Ith+40mA
Cent Wavelength	λc	1540	1550	1560	nm	-
Spectrum Width(-3dB)	Δλ	-	0.5	1	nm	Ith+40mA
Side-mode Suppression Ratio	SMSR	35		-	dB	-
Bandwidth	Bw		2.5		GHz
Monitor Current	Im	100		1200	uA	CW, Ith+40mA
Dark Current of Monitor	Id	-	-	100	nA	5V
Optical Isolation(Single stage)	ISO	35	40	-	dB
Optical Isolation(Double stage)	ISO	45	50	-	dB
Return loss	RL			-45	dB
Analog Characteristic index
Relative Intensity Noise	RIN	-	-155	-150	dB/Hz	-
RF Bandpass Flatness	BF		±1.5		dB
Third-order Distortion	IMD3	-	-55	-	dBc
Carrier Noise Ratio	CNR	51	-	-	dB	Note 1
Composite Second Order	CSO	-	-	-57	dBc
Composite Triple Beat	CTB	-	-	-65	dBc

1550nm DFB Pigtail Laser Diode Modules with 6-8MW

(If customers would like to know more about the details, please click here to download the following PDF file.)

Optical & Electrical Characteristics

Parameter	Symbol	Min.	Typ.	Max.	Unit	Test Condition
Rated Power	Po	6	8	10	mW	Ith+40mA
Slope Efficiency	SE		0.15	0.2	mW/mA
Threshold Current	Ith		10	15	mA	-
Operating Current	Iop		50	70	mA
Forward Voltage Drop	Vop	-	1.0	1.2	V	CW, Ith+40mA
Cent Wavelength	λc	1540	1550	1560	nm	-
Spectrum Width(-3dB)	Δλ	-	0.5	1	nm	Ith+40mA
Side-mode Suppression Ratio	SMSR	35		-	dB	-
Bandwidth	Bw		2.5		GHz
Monitor Current	Im	100		1200	uA	CW, Ith+40mA
Dark Current of Monitor	Id	-	-	100	nA	5V
Optical Isolation(Single stage)	ISO	35	40	-	dB
Optical Isolation(Double stage)	ISO	45	50	-	dB
Return loss	RL			-45	dB
Analog Characteristic index
Relative Intensity Noise	RIN	-	-155	-150	dB/Hz	-
RF Bandpass Flatness	BF		±1.5		dB
Third-order Distortion	IMD3	-	-55	-	dBc
Carrier Noise Ratio	CNR	51	-	-	dB	Note 1
Composite Second Order	CSO	-	-	-57	dBc
Composite Triple Beat	CTB	-	-	-65	dBc

Our company is a China-based DFB pigtailed laser diode device manufacturer and supplier. We provide various types of products such as 405nm-980nm red visible light laser diode modules, Pin TIA receiver, and butterfly fiber coupled laser diodes.
